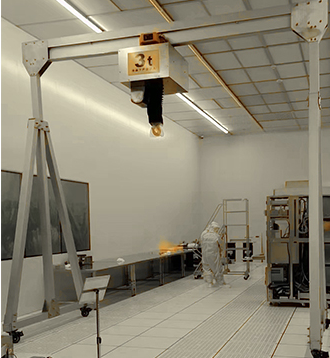

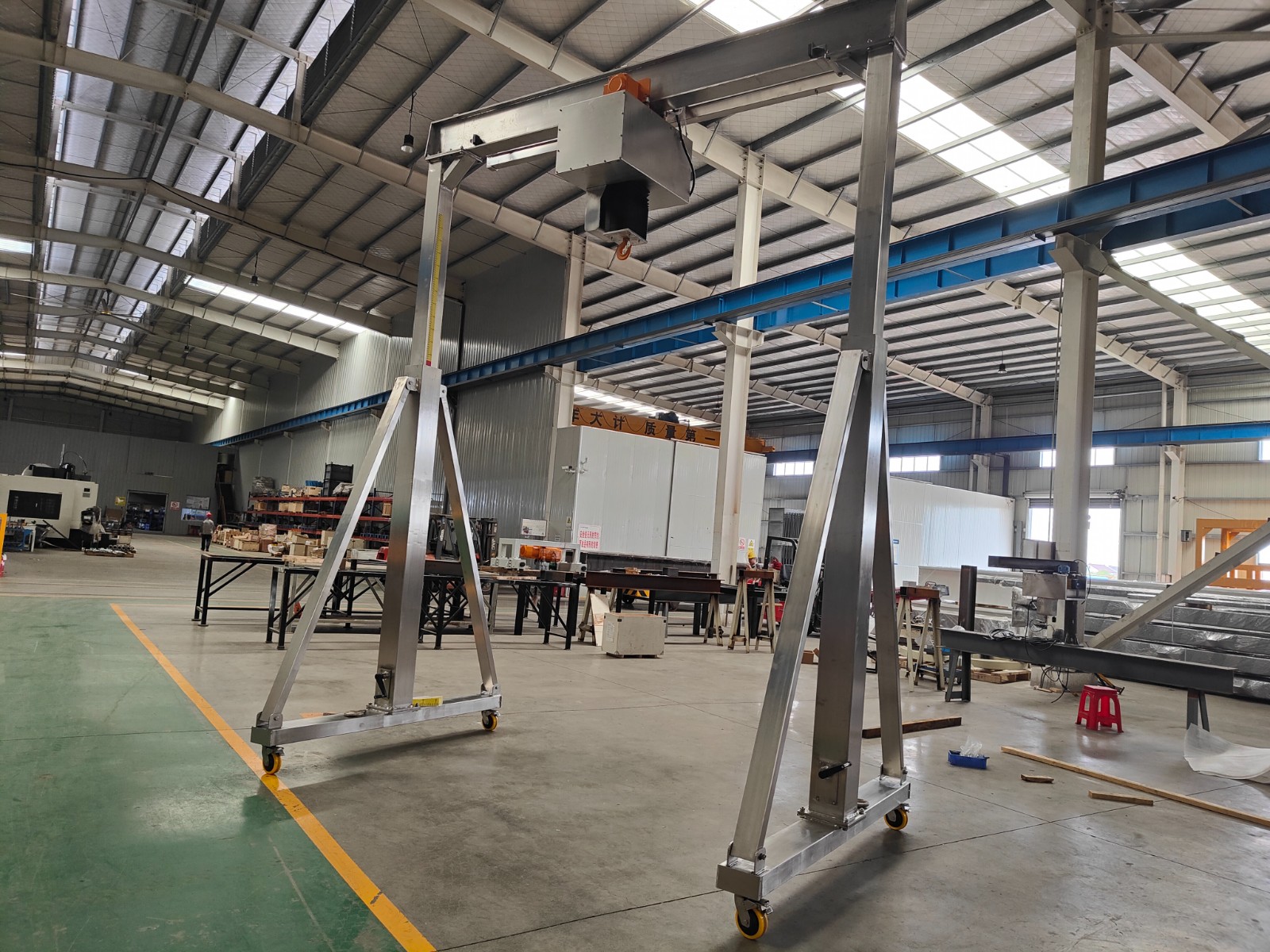

Stainless steel gantry crane is a kind of heavy equipment widely used in industry, logistics, construction and other fields. It is mainly used for hoisting and carrying heavy objects. Its structure is mainly composed of gantry, lifting mechanism, operating mechanism, electrical control system and other parts. Among them, the gantry is a door frame structure composed of two parallel columns and beams, which has strong rigidity and stability. The lifting mechanism realizes the lifting and transportation of heavy objects through transmission devices such as wire ropes.
Height adjustment implementation design

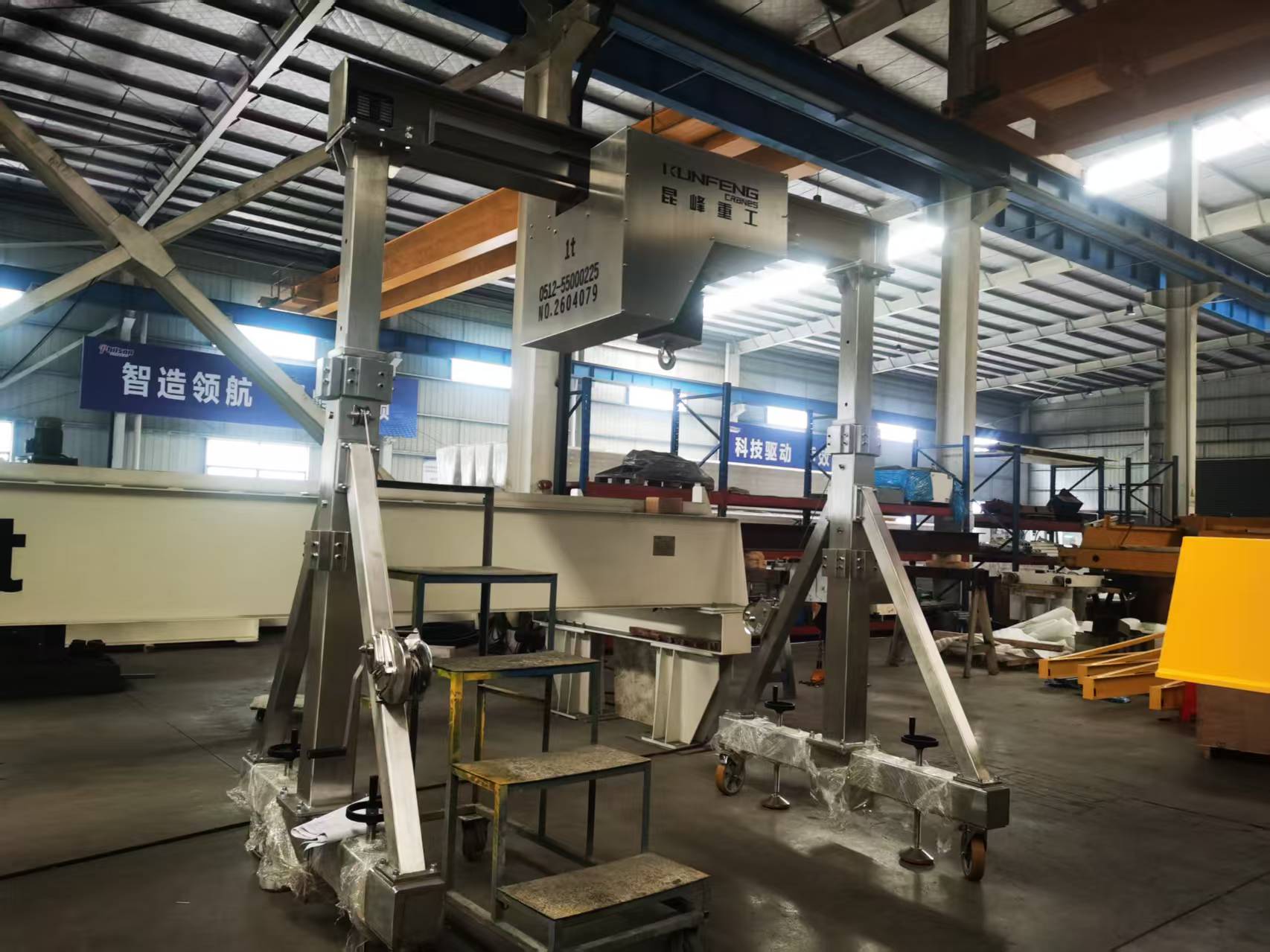

The height adjustment of the gantry is mainly achieved by changing the length of the column. In actual design, telescopic columns or spliced columns can be used to achieve this. Telescopic columns are usually composed of multiple sections of steel pipes, and the height is adjusted through a telescopic mechanism. Spliced columns are made of multiple sections of steel pipes, and the height can be adjusted by increasing or decreasing the number of steel pipes. The adjustment methods of these columns need to take into account the stability and safety of the structure to ensure the normal operation of the crane.
The lifting and lowering adjustment of the lifting mechanism is mainly realized through transmission devices such as motors, reducers and drums. When the motor starts, it decelerates through the reducer and drives the drum to rotate, thereby driving the winding and loosening of the wire rope to realize the lifting and lowering of heavy objects. In this process, factors such as the efficiency and stability of the transmission device, as well as the wear resistance and safety of the wire rope need to be taken into consideration.
Why choose stainless steel
Corrosion resistance: Stainless steel has good corrosion resistance and can resist the erosion of chemicals such as acids and alkalis, extending the service life of the crane.
Strength and toughness: Stainless steel has high strength and toughness and can withstand large loads and impact forces, ensuring the stability and safety of the crane.
Aesthetics: The surface of stainless steel is smooth and beautiful, which can improve the overall image of the crane and establish a good image for the enterprise.
Design features
Compact structure: The gantry structure makes the crane more compact in terms of space occupied, improving the space utilization rate of the production site.
Easy to operate: The crane adopts electric control, which makes the operation simple and fast, reducing the labor intensity of the operator.
Safe and reliable: Stainless steel material and rigorous design ensure the safety and reliability of the crane and reduce the occurrence of production accidents.
Easy maintenance: Stainless steel has good corrosion resistance, reducing the frequency and cost of maintenance. At the same time, the simplicity of the gantry structure also makes maintenance more convenient.
