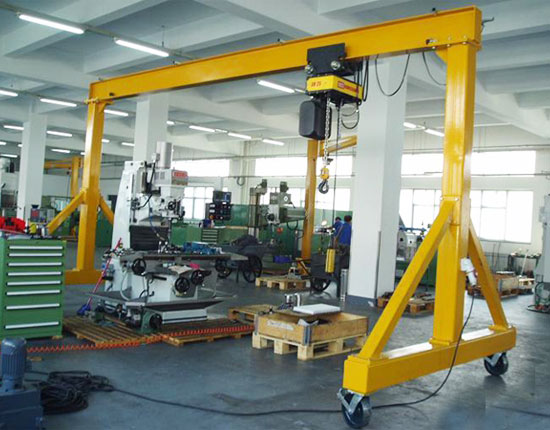

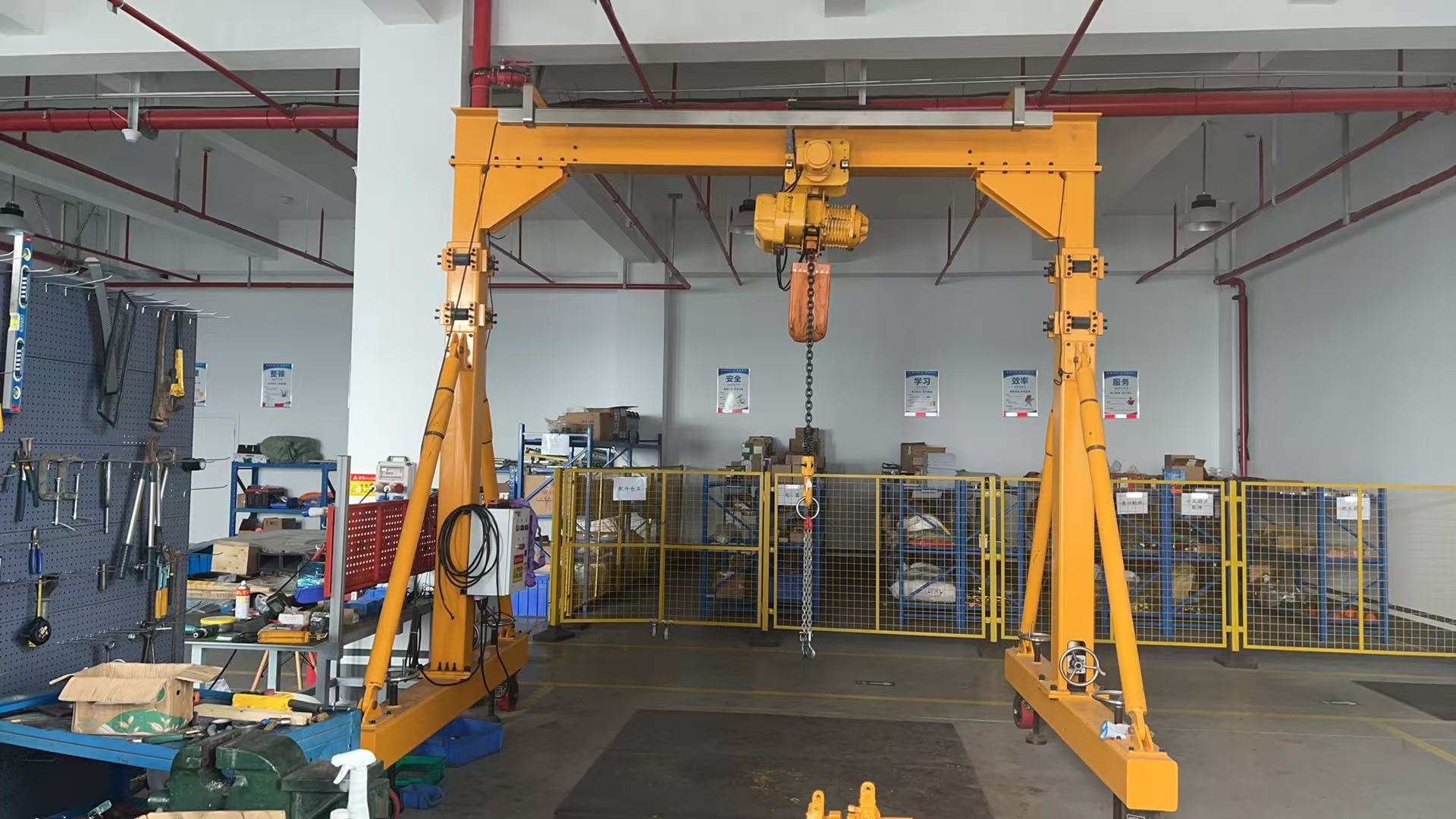

The gantry crane is a cost-effective crane. Mainly used for outdoor cargo yard, stock yard cargo, bulk cargohandling operations. Whose structure is like a door-shaped frame, with two supporting feet installed under the main beam, which can walk directly on.
Material and Configuration
A gantry crane is a type of overhead crane with a single or double girder configuration supported by freestanding legs, trolley move along a beam rail system. Gantry cranes are usually considered when there is a reason not to incorporate an overhead runway system.The maximum load capacity of the small gantry frame can reach 2000 kg. carbon steel or aluminum alloy are common materials used in gantry frames. Small gantry frames are generally made of aluminum alloy, which can reduce the overall weight of the gantry frame and reduce construction costs and energy consumption.
Equipped Hoisting Devices:
Manual chain block
Electric chain hoist
Pneumatic chain hoist
Bespoke lifting system
Oem Solutions
We are dedicated to being able to analyze clients' needs in deeper detail and provide custom solutions to meet their requirements in cases, where the standard product does not exactly match their application.
1.Capacity up from 500kgs to 2000kgs
2.Spans up to 6 metres
3.Over 50 standard models
4.Simple to assemble and disassemble
5.Lightweight, portable design
6.360°Swivel locking castors as standard
Contact KUNFENG Cranes to learn more about how gantry cranes can satisfy your lifting need!
